Build a usable digital twin
Combine image-based asset generation with metric scene alignment and arm–hand calibration.
REALSIMREAL
DEXTERA
From a Single Image to Deployable
Dexterous Manipulation via Real-to-Sim-to-Real
1 The University of Texas at Austin2 University of Florida3 BrainCo
DEXTERA reconstructs a workspace from one image, enabling policy learning in simulation and deployment on real robots.
REAL TO SIM · INTERACTIVE
Explore the reconstructed workspace.
Choose a layout and background, compare the real reference, and look around in 3D.
Step inside the reconstruction.
Load once, then switch layouts and backgrounds.

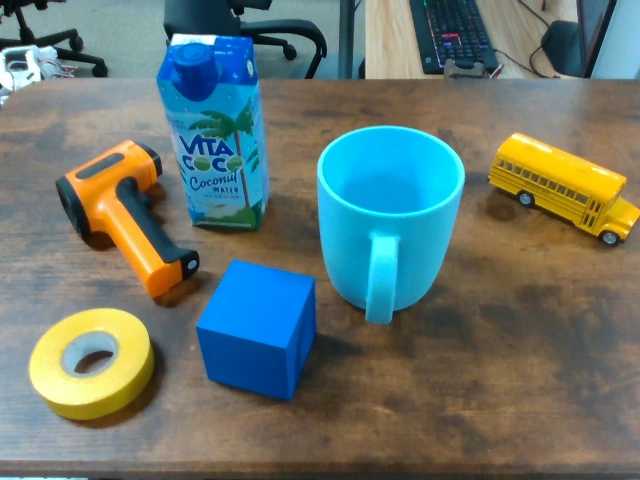

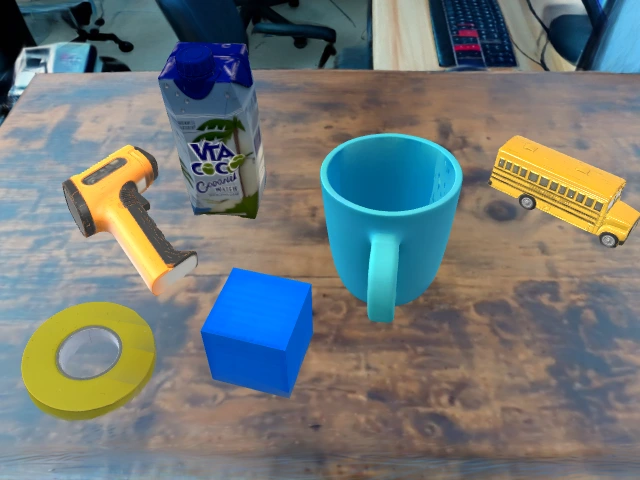

Three captured object layouts, paired with their real reference images. The 3D view combines textured object meshes and independently selectable reconstructed backgrounds.
- 13
- task–embodiment pairs
- 2
- dexterous robot platforms
- 6
- policy architectures
- 86
- object instances evaluated
OVERVIEW
From a workspace image
to real robot behavior.
Reconstruction, calibration, experience, and deployment in one framework.
Dexterous robot learning needs large amounts of experience, but collecting demonstrations on hardware and manually building matching simulators are expensive. DEXTERA connects these steps in a unified workflow.
A single RGB image provides the visual input for a static Gaussian background and interactive rigid or articulated objects. Calibration aligns the reconstructed scene with known robot geometry. Task primitives, VR demonstrations, and object-centric trajectory synthesis then support imitation and reinforcement learning through a shared policy interface.
Experiments examine visual reconstruction, physical trajectory replay, and learned-policy deployment across two robot platforms. Simulation-only policies transfer to hardware, while adding limited real demonstrations improves physical success.
Scale robot experience
Turn a small set of VR demonstrations into trajectories for randomized object configurations.
Connect learning to hardware
Evaluate six policy architectures through a consistent observation and action interface.
ON REAL ROBOTSOpenArm + BrainCo Revo1 / KUKA + LEAP Hand

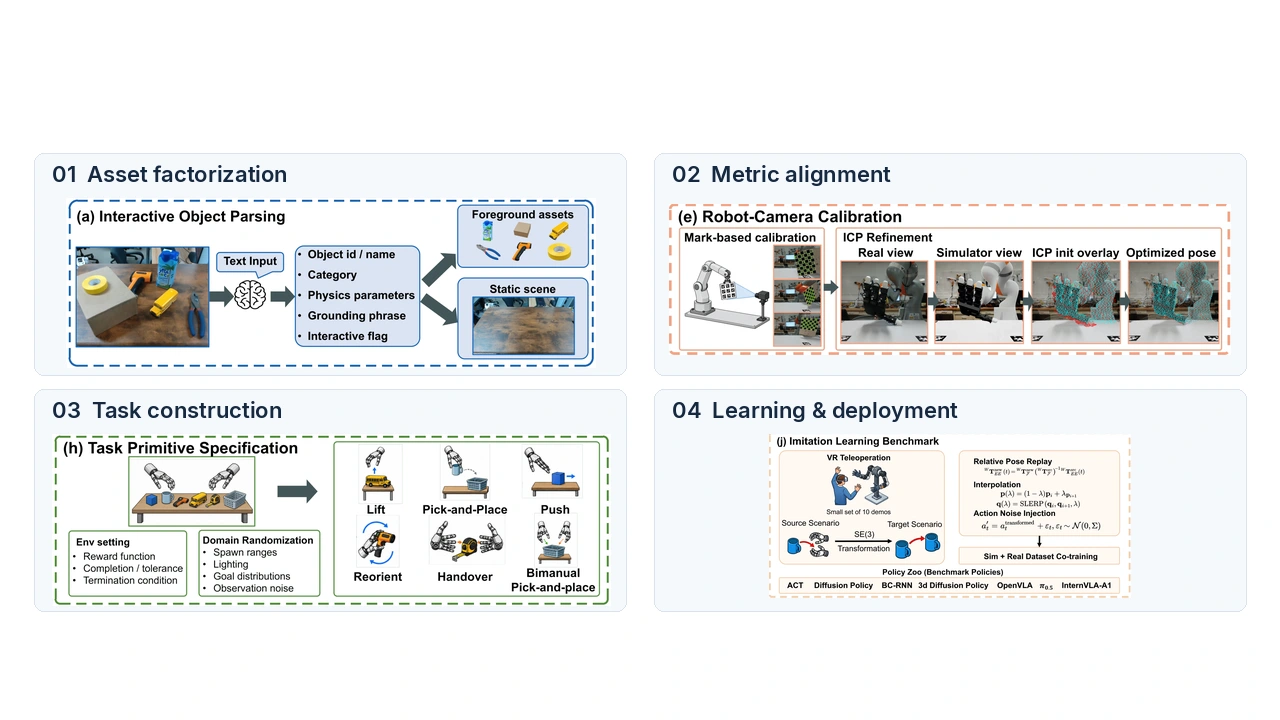

THE FRAMEWORK
Four stages, from image to action.
Generate the scene, align it, define the task, and learn a deployable policy.
01 / RECONSTRUCT
Separate appearance from interaction.
Factor the input image into a static background and individual interactive objects. Complete hidden geometry, generate textured meshes, and assign collision geometry and physical defaults.
- Static Gaussian scene for visual context.
- Rigid meshes and structured articulated assets.
- VLM-inferred physical parameters for initialization.
OUTPUTVisual assets and simulation geometry.
See articulated asset examples
Link geometry, joint axes, and motion limits.
02 / CALIBRATE
Ground the reconstruction in robot coordinates.
Use a calibration capture to recover metric scale and align scene, object, camera, arm, and hand geometry in a common coordinate system.
- Photometric and geometric background registration.
- Object scale and canonical-frame refinement.
- Balanced arm–hand calibration using equal component samples.
OUTPUTA calibrated robot workspace.
03 / CONSTRUCT
Make each scene a place to learn.
Task primitives define rewards, success tolerances, termination, and goal conditions. Randomized initial configurations provide variation for demonstrations and policy training.

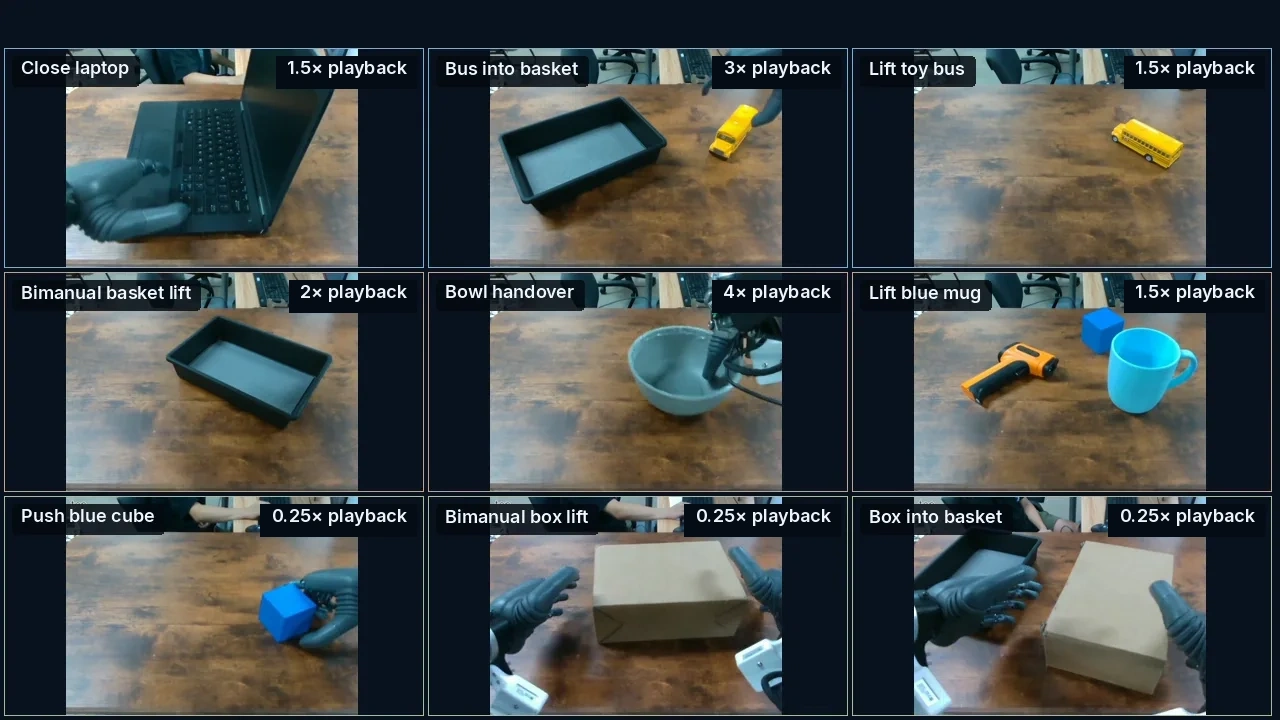

- Lifting, pushing, reorientation, placement, and handover.
- Rigid, articulated, single-hand, and bimanual interaction.
- Consistent success criteria in simulation and on hardware.
OUTPUTTraining tasks and evaluation conditions.
04 / LEARN & DEPLOY
Share the interface across learning methods.
A common multimodal task interface supports imitation learning and reinforcement learning. Deployment preserves the policy's observation representations and action space.
- IL: ACT, Diffusion Policy, BC-RNN, OpenVLA, and π0.5.
- RL: PPO teacher–student distillation.
- ROS 2 connects cameras, robot state, and control commands.
OUTPUTPolicies evaluated on physical robots.
TRAINING
Imitation learning
VR demonstrations and synthesized trajectories, with simulation–real co-training.
TRAINING
Reinforcement learning
A privileged simulation teacher supervises a student with deployable observations.
DEPLOYMENT
RGB images + robot state
The learned policy produces actions for the physical robot.
Input image for asset generation; calibration observations and the known robot model for metric registration.
GENERATING EXPERIENCE
A small demonstration set goes further.
Adapt demonstrated motion to new object configurations using task-relative poses.
VR teleoperation
Collect source motions for contact-rich manipulation in the reconstructed workspace.
10VR demos per task pair
300 + 30simulated + physical trajectories
Preserve the interaction. Vary the starting point.
Object-centric synthesis adapts end-effector motion to new task frames, interpolates waypoints, and adds action noise. Collision checks and task success criteria filter invalid simulated trajectories.
- 3,900
- simulated trajectories
- 390
- physical trajectories
Across 13 task–embodiment pairs. The physical trajectories are collected or replayed on hardware.
EXPERIMENTS
Reconstruction. Interaction. Policy transfer.
Three evaluations connect visual quality to physically executable motion and learned robot behavior.
01Scene quality86 valid object instances02Physical consistency390 trajectory replays03Policy deployment6 learning architectures
01 / RECONSTRUCTION
Better geometry and appearance.
18 RGB-D captures across 10 tabletop scenes.
| Method | Mask IoU ↑ | RGB MAE ↓ | Centroid error (mm) ↓ | F-score @ 1 cm ↑ |
|---|---|---|---|---|
| DEXTERA | 0.731 ± 0.136 | 0.182 ± 0.062 | 11.5 ± 16.0 | 0.906 ± 0.132 |
| Hunyuan3D-2.1 | 0.661 ± 0.180 | 0.223 ± 0.063 | 14.3 ± 17.3 | 0.750 ± 0.250 |
| TRELLIS.2 | 0.559 ± 0.196 | 0.250 ± 0.063 | 25.8 ± 14.4 | 0.346 ± 0.202 |
| SAM3D + FP | 0.604 ± 0.143 | 0.407 ± 0.118 | 18.3 ± 17.3 | 0.622 ± 0.235 |
| SAM3D only | 0.488 ± 0.285 | 0.391 ± 0.111 | 29.9 ± 35.8 | 0.538 ± 0.339 |
RGB values are normalized to [0, 1]. Centroid errors are converted from meters to millimeters. DEXTERA has the best mean values for these selected metrics.
02 / PHYSICAL CONSISTENCY
Simulated motion transfers to hardware.
87.95%343 successful physical replays / 390 trials
For each task pair, 30 trajectories that succeed in simulation are executed on the real robot. This measures the physical consistency of the retained trajectories.
Learned-policy success is measured in separate experiments.
03 / SIMULATION–REAL CO-TRAINING
A little real data improves policy transfer.
Mean physical success across three policies on six selected task pairs.
29.2%SIM ONLY
61.9%SIM + REAL
+32.7 percentage points in mean physical success.
20 physical trials per condition. Co-training improves 17 of 18 policy–task comparisons, with one tie.
ACT
Sim only 35.0%
Sim + Real 62.5%
Diffusion Policy
Sim only 15.8%
Sim + Real 55.8%
π0.5
Sim only 36.7%
Sim + Real 67.5%
Success rate · all bars use a 0–100% scale
FULL POLICY BENCHMARK
Six architectures. Thirteen task pairs.
Mean success across all 13 task–embodiment pairs, weighted equally. Imitation policies use simulation and real training data; PPO uses teacher–student distillation.
0%25%50%75%100%
ACT54.2%
Diffusion Policy37.3%
BC-RNN11.2%
OpenVLA13.8%
π0.556.5%
PPO teacher–student17.3%
Physical evaluation: 20 trials per policy–task pair. Values from Table V.
Explore task-level results 13 task pairs
| Task / robot platform | ACT | DP | BC-RNN | OpenVLA | π0.5 | PPO T–S |
|---|---|---|---|---|---|---|
| OpenArmLift toy bus | 55% | 50% | 0% | 5% | 65% | 20% |
| OpenArmLift blue mug | 100% | 90% | 5% | 10% | 100% | 10% |
| OpenArmPlace toy bus in basket | 15% | 0% | 0% | 10% | 10% | 0% |
| OpenArmHand over gray bowl | 65% | 0% | 0% | 0% | 40% | 10% |
| OpenArmLift basket with both hands | 80% | 45% | 5% | 0% | 90% | 30% |
| OpenArmReorient thermometer | 55% | 15% | 0% | 0% | 50% | 0% |
| OpenArmLift box with both hands | 35% | 50% | 0% | 5% | 60% | 0% |
| OpenArmPush blue cube | 50% | 35% | 10% | 20% | 55% | 10% |
| OpenArmPlace box in basket with both hands | 10% | 5% | 0% | 0% | 20% | 0% |
| OpenArmClose laptop | 80% | 100% | 45% | 45% | 100% | 30% |
| KUKAPlace coconut-water carton in basket | 25% | 0% | 0% | 0% | 5% | 15% |
| KUKALift mustard bottle | 35% | 20% | 0% | 20% | 40% | 25% |
| KUKAClose laptop | 100% | 75% | 80% | 65% | 100% | 75% |
| Mean · all 13 pairs | 54.2% | 37.3% | 11.2% | 13.8% | 56.5% | 17.3% |
Same action spaces and success criteria across methods. Simulation uses 100 trials per pair; hardware uses 20. The platform selector filters the table; the chart above always covers all 13 pairs.

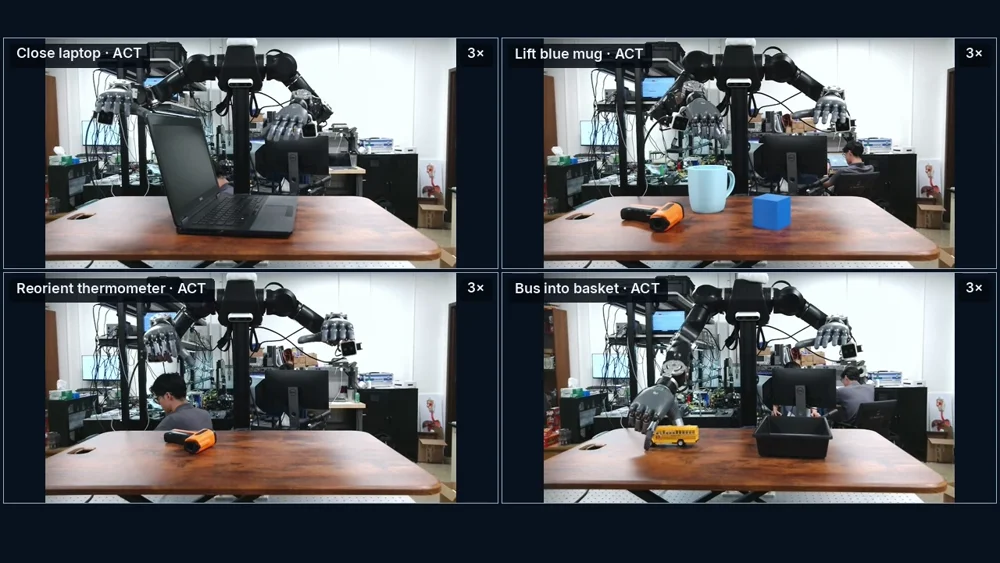

ON THE ROBOT
Dexterous behavior on two platforms.
Physical ACT policy rollouts. Both demonstration panels use 3× playback.
01
OpenArm + BrainCo Revo1
Laptop closing, mug lifting, thermometer reorientation, and toy-bus placement.
02
KUKA + LEAP Hand
Laptop closing, mustard-bottle lifting, and coconut-water placement.
PROJECT VIDEO
The complete DEXTERA walkthrough.
2 min 59 sec · English narration
Captions available
BibTeX
@misc{wu2026dextera,
title = {DEXTERA: From a Single Image to Deployable Dexterous Manipulation via Real-to-Sim-to-Real},
author = {Jin Wu and Lianjie Yuan and Zeyan Sun and Yuanyuan Lei and Disi A and Bicheng Han and Fangzhou Xia},
year = {2026},
eprint = {2609.21045},
archivePrefix = {arXiv},
primaryClass = {cs.RO},
url = {https://arxiv.org/abs/2609.21045}
}
